How To Open/Import Creo Parametric 3D Models in ANSYS

The Best Way to Open 3D Models and Parts Designed in Creo Parametric in Any ANSYS Software Without Losing any data

It is really easy to design a 3D Part model or Assembly design in Creo Parametric. We can also apply material type, Colour Light setup 3D Rendering etc in Creo Parametric very easily. But when it comes to Analysis part it's functions are limited. Almost all are using ANSYS software for the analysis part of a model. But for complex geometry it is very difficult draw the design in ANSYS. So how the model is analyzed for stress and thermal activities?
So there is a in built tool available for ANSYS software to import 3D models from various designing software like Creo Parametric, CATIA, Solid Works etc. Here we are discussing about How To Import Parts designed in Creo parametric 3.0 to ANSYS software without losing any data.

1. After creating a 3D Model in Creo parametric Save the file as usual.
2. After Saving File Go to file > save As > then change the type to IGES file extension, it is a universal format and it will support all designing software
3. Now Open ANSYS Software
4. Then Click on File > Import > IGES File > and browse for your file > and import it
5. The 3D Model will be imported successfully into ANSYS without any Error

File > import >IGES

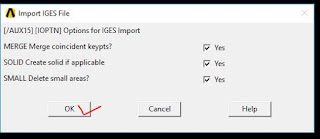

Tick all and click OK

Browse for Your IGES model

Select IGES File saved through Creo parametric

Click OK

Imported Creo parametric IGES in Ansys

If you are facing any error while importing to Ansys please comment the issue deatils below we will help you to resolve the issue
